MAXILLARY ANTERIOR OCCLUSAL

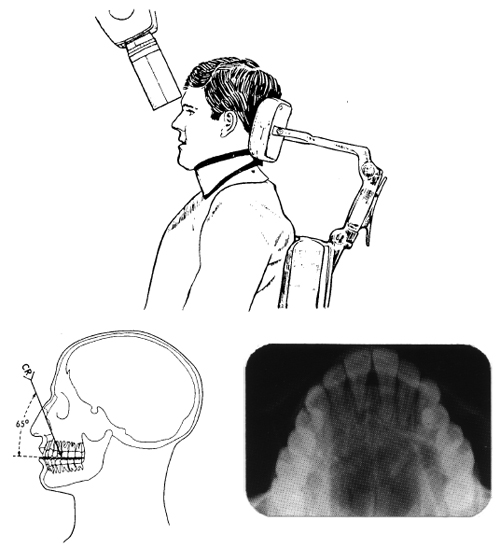

Place the film packet in the mouth with its short axis in line with the median plane. Adjust the tube so that the central ray is directed along the median line and at an angulation of +65º to pass through the bridge of the nose to the film packet (see figure 4-31).
